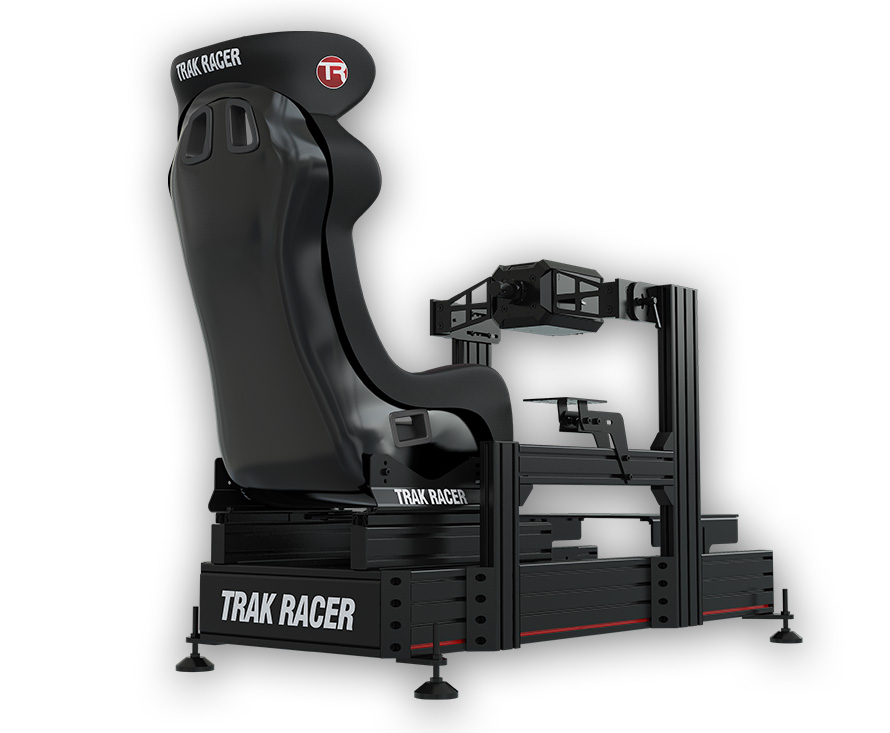

TR160 MK4 RACING SIMULATOR OVERVIEW

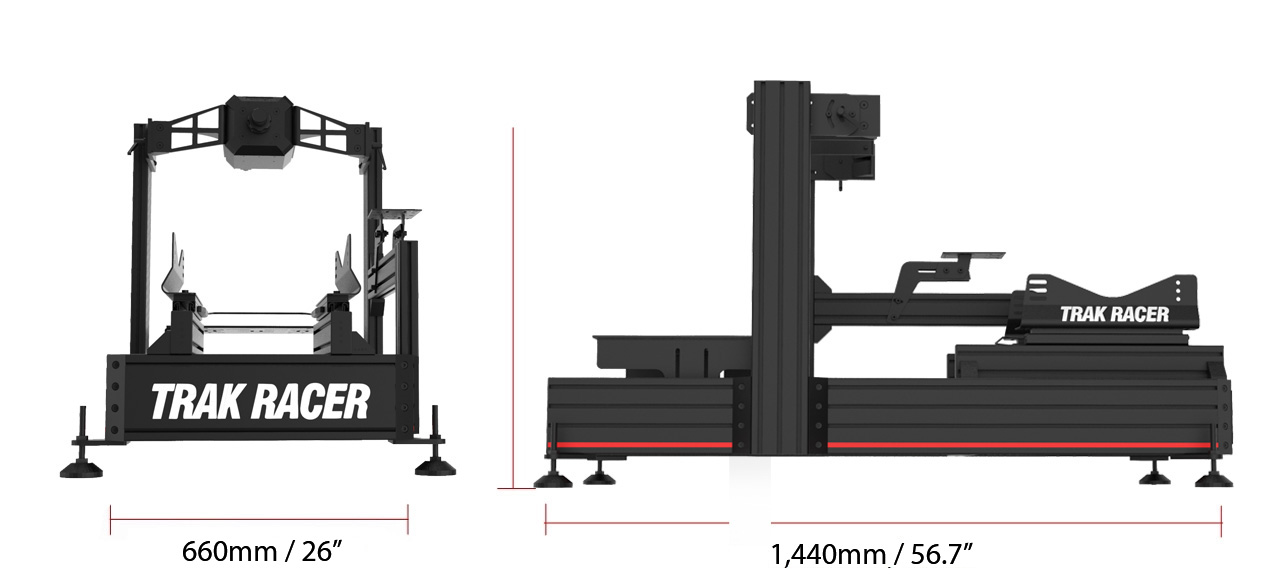

The TR160, the King of the Rigs, has been designed with experience gained since Trak Racer started in 2008. The base structure is 160 × 40mm high-end aluminium T-Slot extruded profile, anodized in black. Your choice of wheel mount will be supported by 160 × 40mm high-end aluminium T-Slot extruded profile wheel uprights, also anodized in black and supported with Trak Racer-Signature Corner Brackets – mounted to the side for additional support.
Heavy-duty anodized black 90-degree brackets connect the frame and laser cut carbon steel plates allow you to attach your peripherals. The TR160 supports the strongest Direct Drive Force Feedback systems on the market and of course, is also Belt Drive Wheel Ready.
The TR160 is pre-drilled and for all popular steering wheels, pedals and shifters on the market and comes with your choice of 4 Stiffened Wheel Mounts for No-Flex Racing as well as options for pedal deck, shifter mount and more.
The Trak Racer accessory range is also constantly evolving to offer over 30 add-on options including speaker mounts, monitor stands, bass shaker mounts, keyboard mounts and more. Designed and Engineered in Australia.
Key Benefits of TR160 Mk4:
Rigid 160mm x 40mm thicker-walled Aluminium Extrusion Profile – Anodized Black
Side-Mounted Wheel Uprights with 160 x 40mm Heavy Duty Brackets
Shifter Mount and Over-sized Support Profile
Over 30 optional accessories
Compatible with TR One Wheel and Shifter Mounting Systems
Wheel Mount – Heavy-duty Wheel Plate (SKU: TR80-WMPLATE)
Pedal Support Plates – Pedal Mount must be selected (select from the Pre-Drilled Pedal Plate OR Aluminium Profile Pedal Mount with Heel Plate)
Universal Gen 2 Shifter Mount and Over-sized Shifter Support
Set of 10 Cable Ties
Red Coloured Strips
160mm x 40mm Black Anodized Aluminium Chassis
160mm x 40mm Black Anodized Aluminium Wheel Supports
All Mounting Screws, Brackets and Fixtures included
Assembly Tool Kit Included

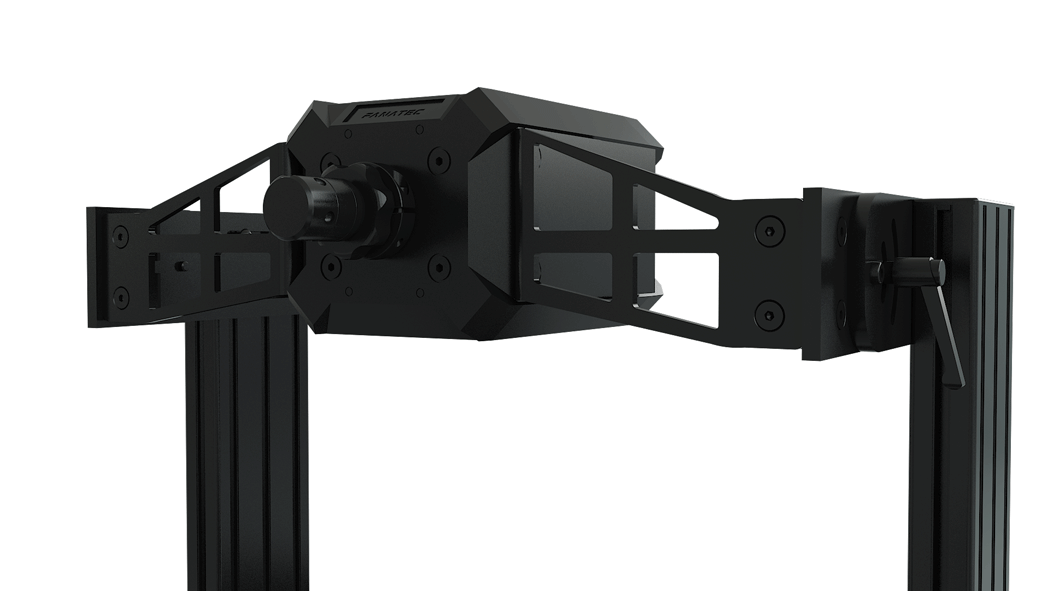

INTRODUCING the TR ONE Wheel Mounting System
The TR One Wheel System will allow you to purchase updated wheel mounts that fit the base (and most expensive) part of the kit.
The base kit (Part Number: TR80-NWMA) consists of 2 High-Quality 80x40mm Aluminium Profiles and 4 Red Anodised Aluminium Plates. Optional wheel mounts include a wheel deck and direct-drive front mounting plate. The plates themselves are extremely rigid and have a lot of adjustment for angle and forward/backward fine-tuning – to get a perfect position!
